Triple E UNITRACK System

For over 20 years, UNITRACK has led the market with robust construction, versatility and reliability. This reputation, built through countless successful applications in productions and events, has established UNITRACK as a product of choice by professionals worldwide.

With its full range of accessories, UNITRACK is most suitable for heavy-duty applications and will easily meet the demands of all major performance venues and events. All carriers utilize precision-sealed bearings molded into nylon wheels ensuring exceptionally quiet operation.

UNITRACK is THE system for touring:
  • Fits into road cases
  • Breaks down into easily manageable parts
  • The longest piece of straight track is 6'6" long
  • Working load capacity is high
  • Two-wheeled carriers can be added or removed anywhere along the track by removing the plastic keeper bar and turning the carrier at right angles to the track
Curve Cord Guides are necessary when stringing a curved track.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Request A Track System Quote

Learn more

Show Less

Unitrack Manual
(large PDF file)

Unitrack Detail Specifications

Unitrack Specifications/Drawings

Triple E Safe Working Load Specs

Call 800-223-1624 or email for more information and to order full systems.

Parts and track channel can be ordered below.

Track In A Box

Nothing could be easier then a system of Triple E Unitrack with everything you need, packaged and ready for touring and temporary installation.
View Comparison
Price Ranges
$15,350.90

Unitrack Straight Track Sections

Triple E's award-winning UNITRACK System is ideal for both touring and permanent installations.
View Comparison
Price Ranges
$91.58 - $225.99

Curved track Sections TRC

Four curved Triple-E Track section sizes.
View Comparison
Price Ranges
$710.06 - $1,368.90

Remote Pendant for Tracdrive TRADP1

Pendant for the Tracdrive, E-Drive and the S-Drive.
View Comparison
Price Ranges
$504.20

2-Wheeled Carrier TRA 06

For straight track systems. Normal spacing is every 12" apart. 55 lb. SWL.
View Comparison
Price Ranges
$41.86

4-Wheeled Carrier TRA06C

For curved track systems. Normal spacing is every 12" apart. 55 lb. SWL.
View Comparison
Price Ranges
$63.83

Adjustable Floor Pulley Set (for straight systems) TRA 12

Weighted or screwed to the floor, the pulley is adjustable in height.
View Comparison
Price Ranges
$163.80

Central Rope Crossover For Rearfold To Center Butt TRA29

Unitrack Central Rope Crossover For Rearfold To Center Butt TRA29
View Comparison
Price Ranges
$222.36

Cord TRA 27

  • Black Feet
Pre-stretched matte black polyester cord 5/16" in diameter used to operate all Triple E systems.
View Comparison
Price Ranges
$4.00

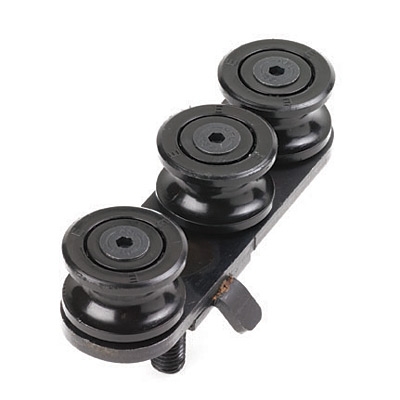

Curve Cord Guide Set TRA19 OR UBM19

Bolts to the top of the track and guides the operating cord around the top of the track system.
View Comparison
Price Ranges
$121.91

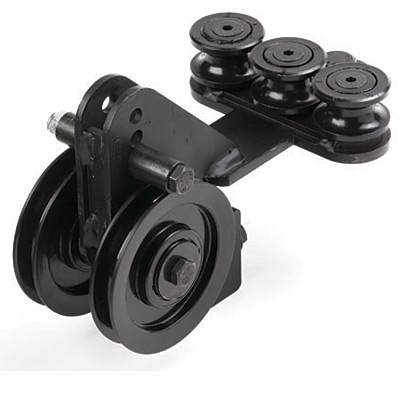

Curve Head Pulley Set TRA 21 (UBM21)

For curved systems, it can divert the operating cord up or down towards a motor or floor pulley.
View Comparison
Price Ranges
$333.48

Curve Master Carrier (Runner) H.D. TRA 20 HD

Same as TRA 20, but for use on track over 70' long and for motorized systems.
View Comparison
Price Ranges
$645.72

Curve Master Carrier (Runner) TRA 20

Same as master carrier (TRA 07) but with rope clamping arm that guides the cord through
View Comparison
Price Ranges
$324.36

Curve Return Pulley Set TRA 22 (UBM22)

Diverts the operating cord above the track back towards the head pulley.
View Comparison
Price Ranges
$165.69

Curve Suspension Bracket TRA23 OR UBM23

Must be used on curved track systems between the track and other suspensions.
View Comparison
Price Ranges
$81.90

Deadline Fixing TRA 15

Used for suspending tracks from rope or wire rope. Tested to 330 lbs. SWL.
View Comparison
Price Ranges
$73.30

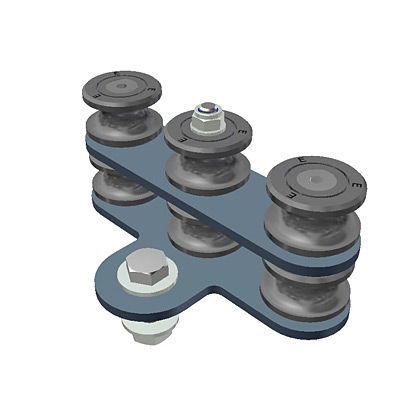

Double Cord Guide TRA 40


View Comparison
Price Ranges
$160.00

Double Cord Head Pulley TRA 42


View Comparison
Price Ranges
$433.80

Double Cord Master Runner TRA 41


View Comparison
Price Ranges
$472.10

Double Cord Return Pulley TRA 43


View Comparison
Price Ranges
$404.60

Endstop TRA 24 (UBM24)

Used for the ends of all tracks to anchor the trailing edge of the curtains.
View Comparison
Price Ranges
$36.18

Flat End Stop TRA24S (UBM24S)

Used in conjunction with scenery carriers and when there is no curtain to anchor.
View Comparison
Price Ranges
$40.26

Foot Stirrup Floor Pulley (for straight systems) TRA 11

Used on flown or movable track systems.
View Comparison
Price Ranges
$149.57

Frontfold Brush Assembly TRA08F

Unitrack Frontfold Brush Assembly TRA08F
View Comparison
Price Ranges
$222.09

Girder Clamp TRA 13

Used to suspend the track from I-beams.
View Comparison
Price Ranges
$85.50

Head Pulley (for straight systems) TRA 09 (UBM09)

For use with straight rack systems; the head pulleys diverts the cord down to the floor.
View Comparison
Price Ranges
$206.26

Joint Set TRA 05

Set consists of 4 spigots, 1 joint bolt with nut and 2 washers. Used for joining straight UNITRACK sections together.
View Comparison
Price Ranges
$23.21

Line Pickup TRA 25 (UBM25)

Used on the return side of overlap tracks.
View Comparison
Price Ranges
$28.36

Master Carrier with Adjustable Rope Clamp and Limit Striker TRA 07L

Unitrack Master Carrier with Adjustable Rope Clamp and Limit Striker TRA07L
View Comparison
Price Ranges
$214.80

Offset Plate TRA 17 (UBM17)

Used with pipe clamps (TRA 14) so that when an overlap track is attached to a single pipe or truss, the tracks hang centered under the pipe.
View Comparison
Price Ranges
$41.98

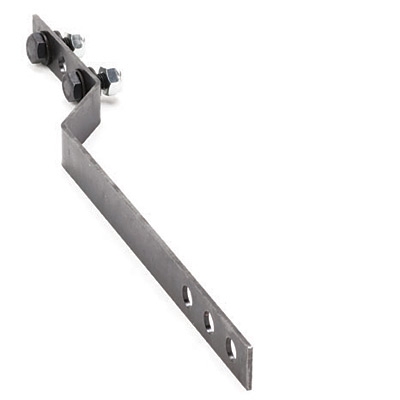

Overlap Arm Carrier TRA 07 A

Used in conjunction with master carriers on single tracks to create an overlap.
View Comparison
Price Ranges
$55.80

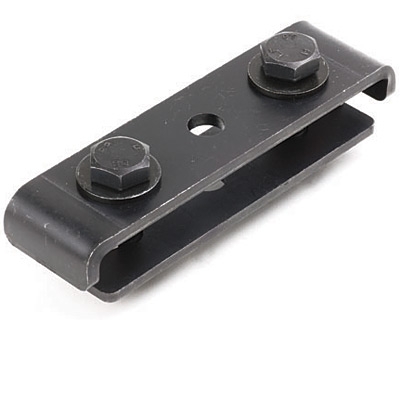

Overlap Clip Set TRA 26 (UBM26)

Used on straight and curved track to maintain track spacing and keep the tracks rigid where they overlap.
View Comparison
Price Ranges
$39.59

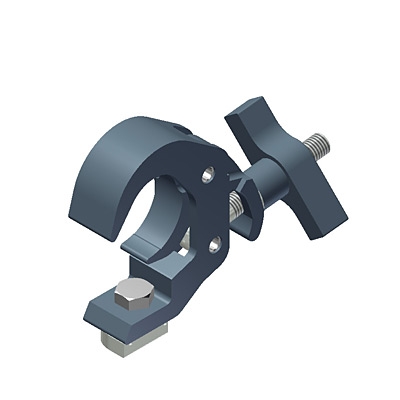

Pipe (Hook) Clamp TRA 14 (UBM14)

Used for attaching track to any size pipe or truss with an OD range of 1.5" to 2"
View Comparison
Price Ranges
Cut $73.00
Full Piece $105.81

Rearfold 2-Wheeled Carrier TRA06R

For straight track only. The curtain stacks offstage.
View Comparison
Price Ranges
$97.64

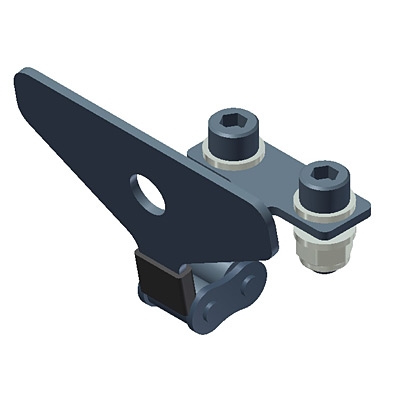

Rearfold tag with 8mm Hole TRA 08


View Comparison
Price Ranges
$40.64

Rearfold Tag with Pilot Hole

May be retrofitted to TRA-06 to make TRA06R or to TRA06C if used on straight track sections.
View Comparison
Price Ranges
$39.60

Return Pulley (for straight systems) TRA 10 (UBM10)

Used on straight track systems with head pulley to return the operating cord.
View Comparison
Price Ranges
$137.27

Scenery Carrier - Bottom TRA 28 B

Used with TRA 28 and TRA 28AHD to carry pieces varying from 1/4" to 2".
View Comparison
Price Ranges
$234.47
