ADC Rig-I-Flex® 140 Series Track


RIG-I-FLEX® is a versatile I-beam track which has been engineered for both curved (Model 140) and straight (Model 141) cord traverses as well as for "walk-along" (Model 142). It was designed for medium weight curtains on stages and TV studios and for enclosing areas in industrial plants. Overall track length should not exceed 60 feet. Model 140 utilizes spindles and idler brackets for guiding the operating cord along curved areas. Manually operated cord-drawn curved tracks require more effort than straight tracks. Therefore, motorized systems should be used, especially where sharp curves are involved. The track is curved on the job or at the factory (at additional cost) to a minimum radius of 2 feet. Uses 1 carrier per foot.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Request A Track System Quote

Learn more

Show Less

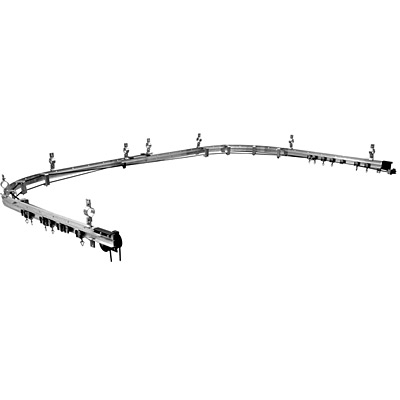

Rig-I-Flex® 140 Series Complete Track System (CWANA*)

A versatile I-beam track which has been engineered for both curved and straight cord traverses, as well as "walk-along."
View Comparison
Price Ranges

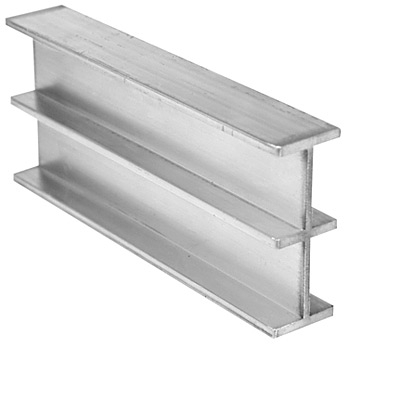

1400 Rig-I-Flex® Track Channel

11 gauge extruded aluminum, mill-finish.
View Comparison
Price Ranges
$174.05 - $417.73

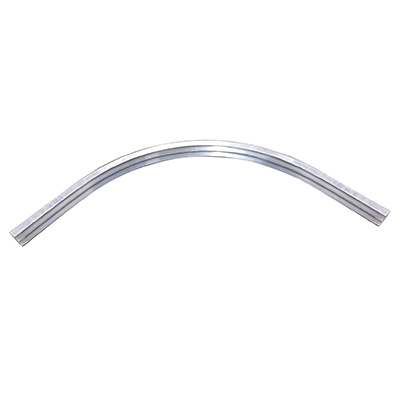

1492 90 Degree Curve Track 24" radius

11 gauge extruded aluminum, mill finish, 90 degree curve 2' x 2' with 2 splice clamps.
View Comparison
Price Ranges
$188.42 - $244.84

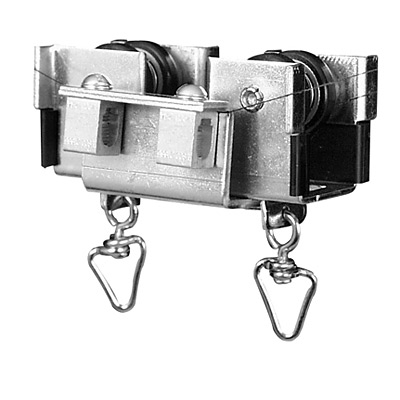

1402 Master Carrier

Pivoting block assembly constructed of plated steel supported from 4 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$126.77 - $136.20

1403 Live End Pulley

Equipped with 2 oil-impregnated sleeve-bearing nylon wheels. Anchored to track end.
View Comparison
Price Ranges
$112.13 - $121.10

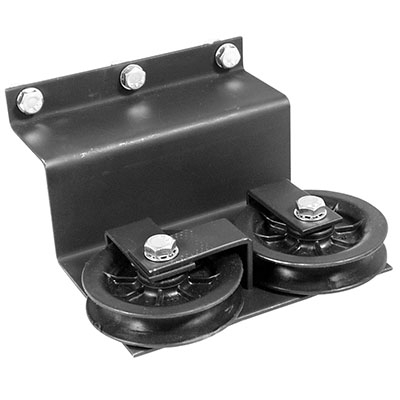

1403-A Center Take Off Live End Pulley

Dual wheeled pulley used to route the operating cords/cables perpendicular from the track to a wall mounted mule block or diverter pulley.
View Comparison
Price Ranges
$134.07

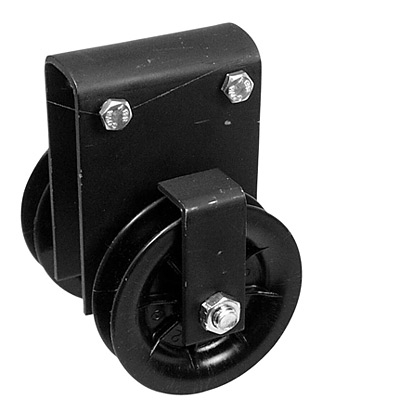

1403-B Live End Pully

Used with straight track systems (Models 141 and 141-R). Equipped with 2 oil-impregnated sleeve-bearing nylon wheels.
View Comparison
Price Ranges
$130.65 - $193.64

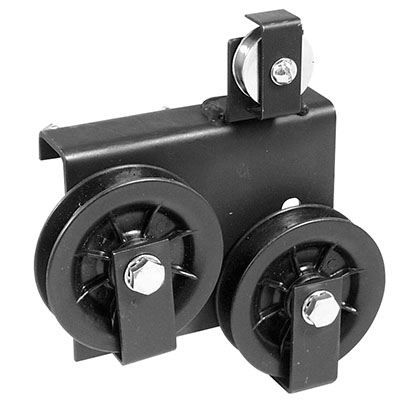

1403-F Flying Live End Pulley

Dual wheeled pulley (with 1 idler) used to route the operating cords/cables to allow them to align with a Flying Type Curtain Machine.
View Comparison
Price Ranges
$116.09

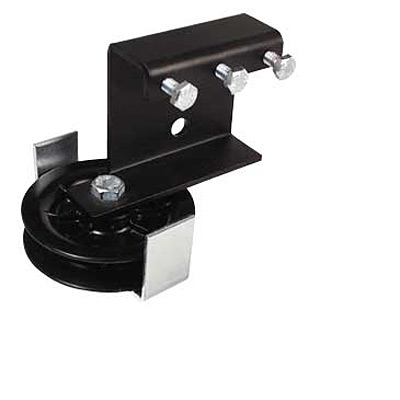

1404 Dead End Pulley

Equipped with 1 oil-impregnated sleeve-bearing nylon wheel.
View Comparison
Price Ranges
$85.40 - $98.82

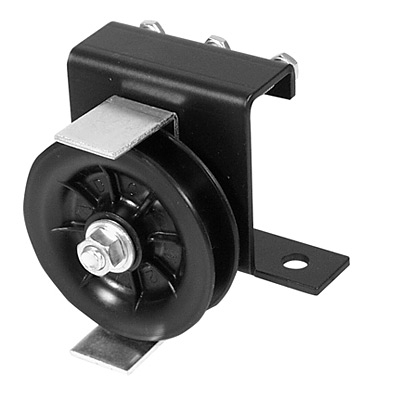

1404-A Dead End Pulley

Dead end pulley used with one-way draw applications, with 1 oil-impregnated sleeve-bearing nylon wheel.
View Comparison
Price Ranges
$71.63 - $84.29

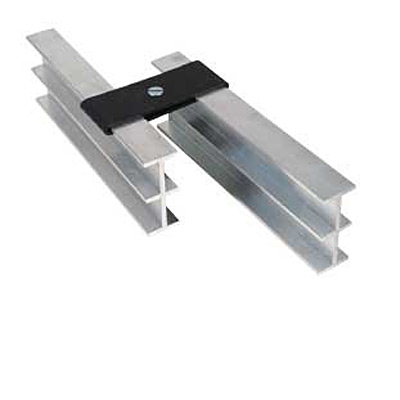

1407 Lap Clamp

For securing double-sectioned track at center overlap.
View Comparison
Price Ranges
$30.33 - $36.50

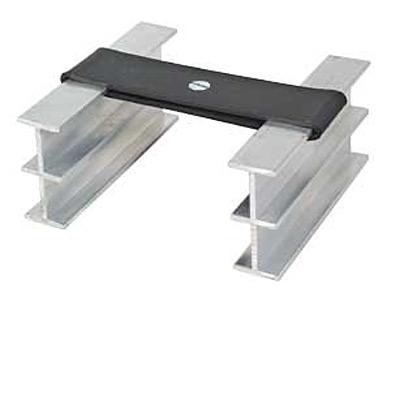

1407-A Lap Clamp

For use with continuously curved track systems.
View Comparison
Price Ranges
$33.32 - $36.50

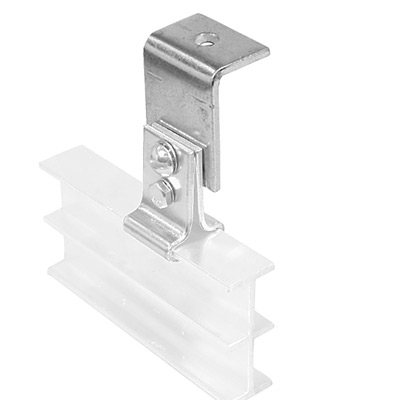

1408-A Mounting Bracket

Used with Model 4208 Hanging Clamp.
View Comparison
Price Ranges
$3.98 - $4.83

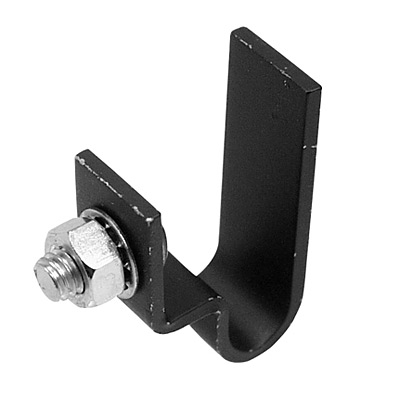

1409 End Stop

Prevents carriers from moving beyond selected position in track. Used also as cord guide.
View Comparison
Price Ranges
$23.62 - $27.55

1409B End Stop

Prevents carriers from moving beyond selected position in track. Used also as cord guide. Used with straight model 141.
View Comparison
Price Ranges
$12.88

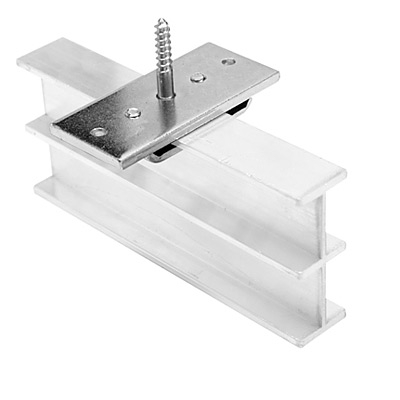

1423 Ceiling Clamp

For use on ceiling-mounted installations. Adjustable to any location.
View Comparison
Price Ranges
$19.00 - $21.23

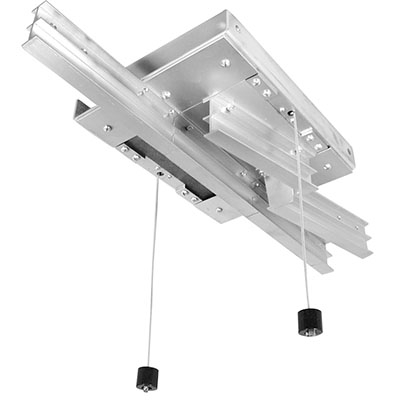

143 Left or Right Hand Standard Switching Device

Simply by pulling down on a pendant, the track channel is shifted and the curtain is then moved to the switched channel.
View Comparison
Price Ranges
$987.43 - $1,001.89

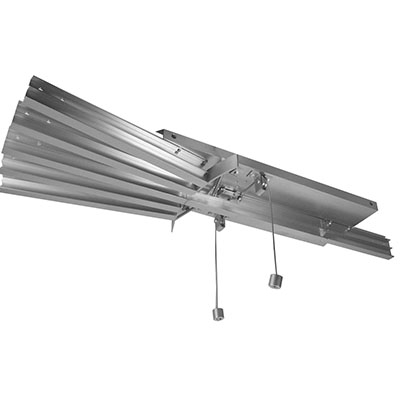

143-3 3-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges
$1,966.50

143-4 4-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges
$2,034.40

143-5 5-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges
$2,063.90

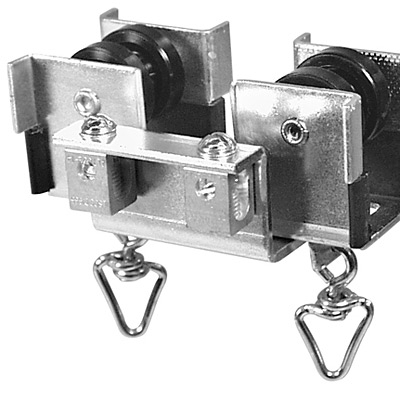

1438 Master Carrier

Pivoting block assembly constructed of plated steel supported from 4 solid nylon wheels.
View Comparison
Price Ranges
$127.63 - $151.74

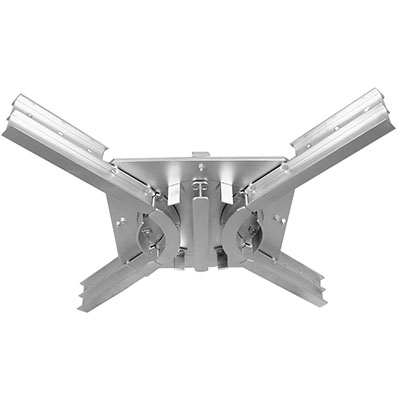

143CC Cross Switch

Supplementing the line of two-way switching devices, track switching which involves a turntable on which four different switching directions can be affected.
View Comparison
Price Ranges
$1,239.41

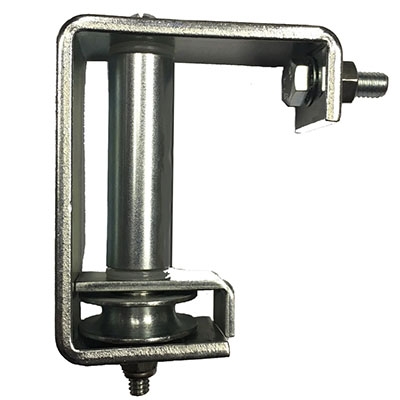

1458 R Spindle Reverse

Consists of steel tubing including 2 ball-bearings for guiding cord around curves. Used only for single track systems using overlapping master carriers.
View Comparison
Price Ranges
$56.75 - $68.49

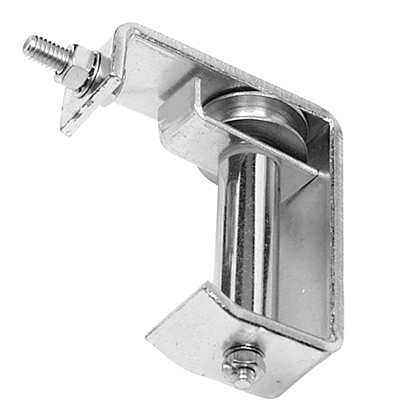

1458 Spindle A

Consists of steel tubing including 2 ball-bearings for guiding cord around curves.
View Comparison
Price Ranges
$63.12 - $73.94

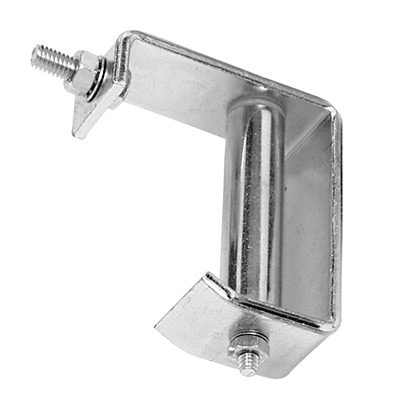

1459 Spindle B

Spindle used for Bi-Parting curved 140 track systems.
View Comparison
Price Ranges
$44.49 - $52.19

1460 Idler Bracket

Spindle used with all Bi-Parting curved 140 track systems.
View Comparison
Price Ranges
$31.71 - $43.26

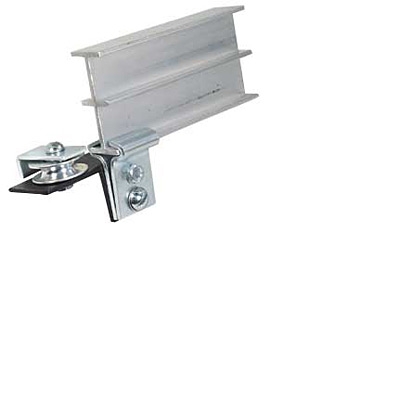

1460-A Idler bracket

Used at overlap for track systems with a continuous radius.
View Comparison
Price Ranges
$72.34 - $78.25

1477 Suspension Rod

3/8" All Thread
View Comparison
Price Ranges
$10.08

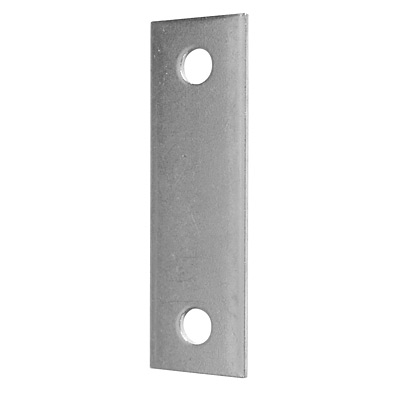

1478 Suspension Strap 4"

Used with Model 4208 Hanging Clamp and pipe clamp to attach track to parallel overhead pipe batten.
View Comparison
Price Ranges
$14.05 - $17.88

1478-AL Suspension Strap 8"

Used with Model 4208 Hanging Clamp and pipe clamp to attach track to parallel overhead pipe batten.
View Comparison
Price Ranges
$23.57

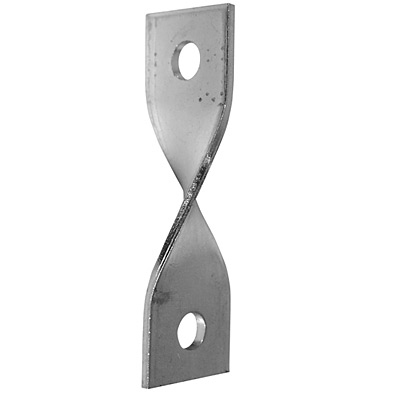

1481 Joining Twist Strap

Used with Model 4208 Hanging Clamp and pipe clamp to attach track to perpendicular overhead pipe batten.
View Comparison
Price Ranges
$23.22 - $26.53

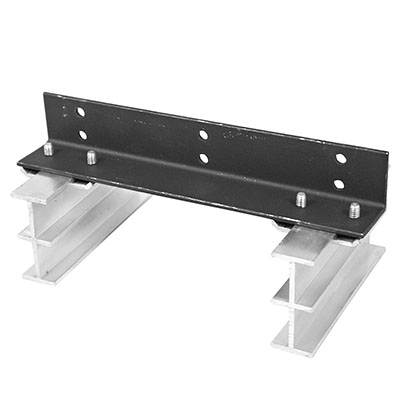

1482 Double Track Hanger

Used to mount 2 tracks, parallel with each other when the tracks are suspended from an overhead structure.
View Comparison
Price Ranges
$45.08

1483INV Inverted Leg Wall Bracket

Allows the tracks to be mounted closer to the ceiling.
View Comparison
Price Ranges
$73.24

1483UNI Universal Wall Bracket

Wall Bracket used with bi-parting or one way track systems. 280/170/140/132 series tracks.
View Comparison
Price Ranges
$83.37

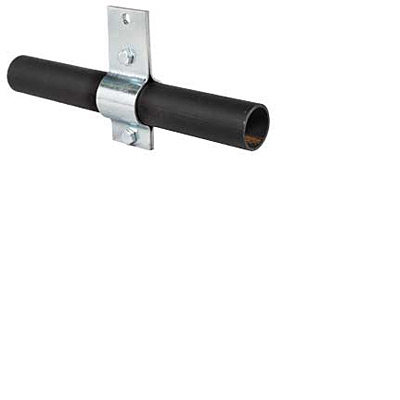

1713 Pipe Clamp

For 1" I.D. Schedule 40 pipe
View Comparison
Price Ranges
$10.27 - $11.60

1714 Pipe Clamp

For 1-1/4" I.D. Schedule 40 pipe
View Comparison
Price Ranges
$10.85 - $13.40

1715 Pipe Clamp

For 1-1/2" I.D. Schedule 40 pipe.
View Comparison
Price Ranges
$11.88 - $15.15

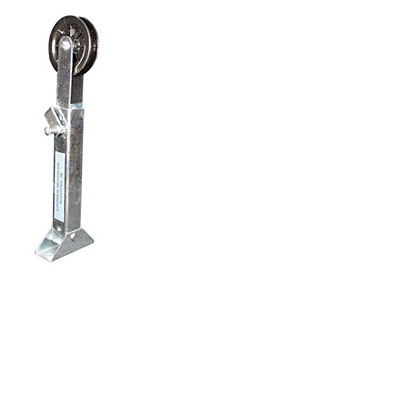

2865 Tension Floor Pulley

Equipped with 1 oil-impregnated sleeve bearing nylon wheel. Tension spring provides cord tautness. Wall or floor mounted. Spring-loaded latch maintains wheel in uppermost position during cording. Great substitute for the discontinued 1145 floor pulley.
View Comparison
Price Ranges
$98.24 - $113.17

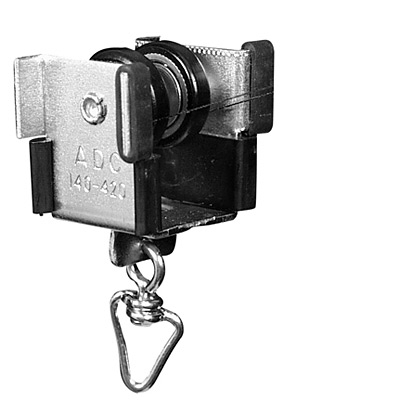

4201 Single Carrier

Carrier spacing: 12". Plated steel block supported from 2 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$23.55 - $27.48

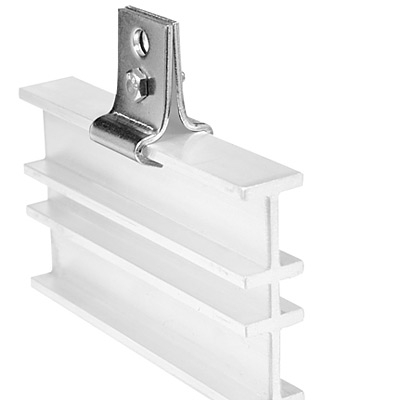

4208 Hanging Clamp / 4209 End Stop

Recommended spacing: 4' with additional units in curves and stack areas.
View Comparison
Price Ranges
$4.42 - $5.87
