ADC Tripl-I-Trac® 420/422 Series Track


TRIPL-I-TRAC® Model 422 is a heavy-duty I-beam track consisting of four flanges designed to support heavier-than-usual curtains. It is recommended for curtains that are too heavy for 140 series track systems used on stages, TV studios and gym divider installations. Model 420 is used in corded curved applications and utilizes Spindle and Idler brackets (not included CWANA) for guiding the operating cord along curved areas. The track channel can be curved in the field with the use of a bending tool, or at the factory. NOTE: Model 420 cannot be used for cord-operated reverse curved or serpentine layouts. Model 422 is used for walk-along applications where the operator walks the curtain open and closed. No cables, cords, or pulleys are used with this type of system. The track can be curved in the field with the use of a bending tool, or at the factory. When ordering, advise whether the track is to be ceiling-mounted or suspended. Manually operated cord-drawn curved tracks require more effort to operate than straight tracks. Therefore, motorization should be considered especially when sharp curves or long runs are involved.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Request A Track System Quote

Learn more

Show Less

Installation Instructions Models: 420, 422

Call 800-223-1624 or email for CWANA full system pricing.

Parts and track channel can be ordered below.

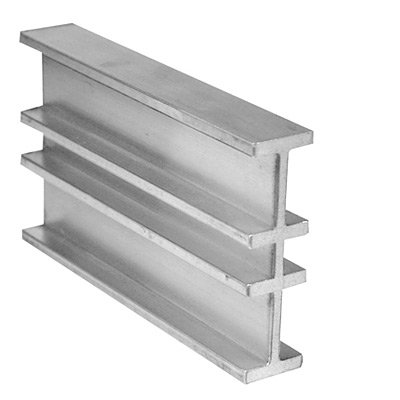

4200 Tripl-I-Track Channel

7 gauge extruded aluminum, mill-finish.
View Comparison
Price Ranges
$501.27 - $789.04

4201 Single Carrier

Carrier spacing: 12". Plated steel block supported from 2 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$23.55 - $27.48

4203 Live End Pulley

Equipped with 2 oil-impregnated sleeve- bearing nylon wheels.
View Comparison
Price Ranges
$184.37

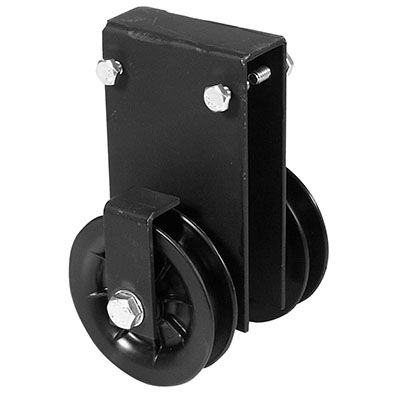

4203B Live End Pulley

Powder coated steel construction with 2 oil-impregnated sleeve-bearing nylon wheels.
View Comparison
Price Ranges
$469.82

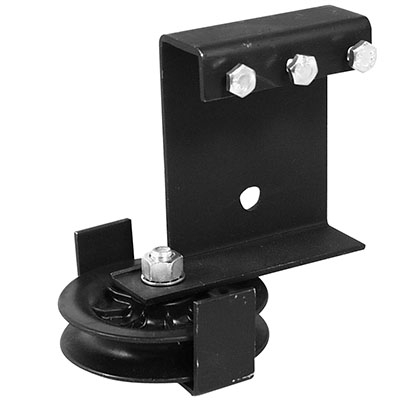

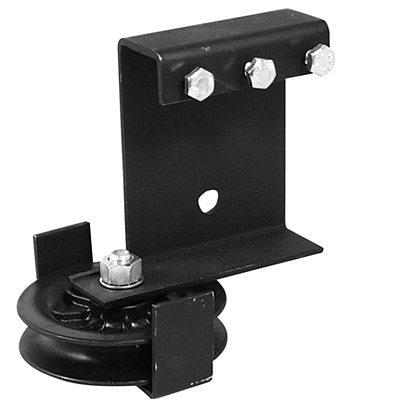

4204 Dead End Pulley

Equipped with 1 oil-impregnated sleeve-bearing nylon wheel.
View Comparison
Price Ranges
$134.68

4204A Dead End Pulley

Powder coated steel construction with 2 oil-impregnated sleeve-bearing nylon wheels.
View Comparison
Price Ranges
$98.85

4208 Hanging Clamp / 4209 End Stop

Recommended spacing: 4' with additional units in curves and stack areas.
View Comparison
Price Ranges
$4.42 - $5.87

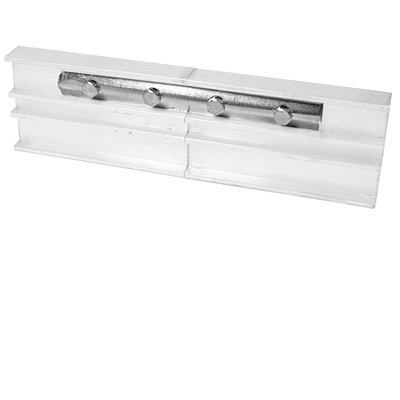

4224 Splicing Clamp

Lock plate for joining track sections assuring proper vertical and horizontal track alignment.
View Comparison
Price Ranges
$11.98 - $18.98

423 Left or Right Hand Standard Switching Device

Simply by pulling down on a pendant, the track channel is shifted and the curtain is then moved to the switched channel.
View Comparison
Price Ranges

423-3 3-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges

423-4 4-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges

423-5 5-Way Fan Switch

Allows for the switching of "walk-along" curtains from one track to as many as five tracks in a fan-shaped arrangement.
View Comparison
Price Ranges

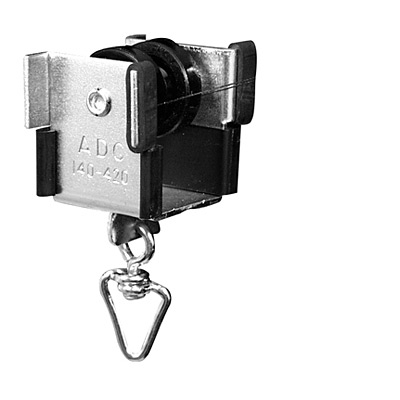

4237 Single Carrier

Plated steel block supported from 2 solid nylon wheels.
View Comparison
Price Ranges
$20.67 - $24.60

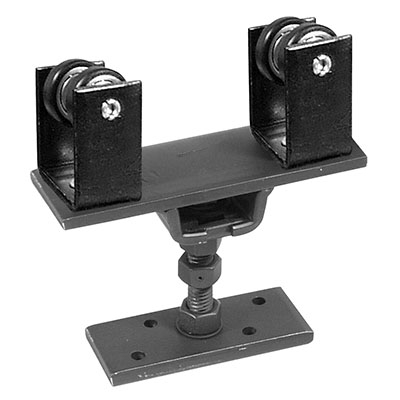

4251 Scenery Carrier

This carrier was designed to traverse medium weight (see below) scenery panels along a Model 1400 track.
View Comparison
Price Ranges
$348.30

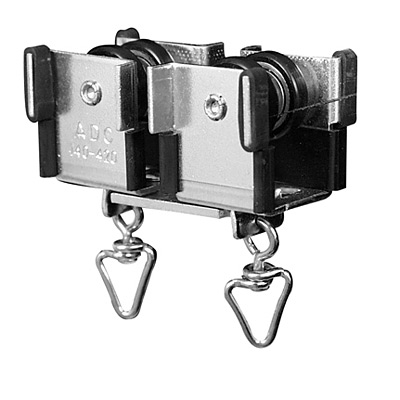

4252 Master Carrier

Plated steel pivoting block assembly supported from 4 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$71.87 - $75.78

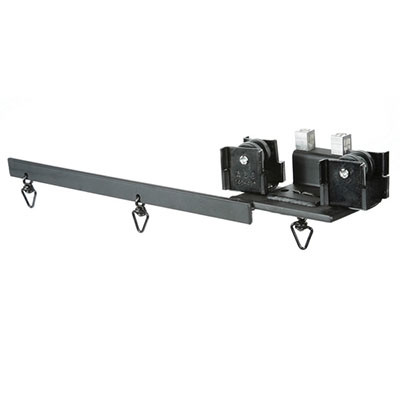

4252-A Master Carrier with Overlap Arm

Master carrier with extension arm to allow curtains to overlap at track center, for bi-parting systems, using a single track in place of 2 overlapped track sections.
View Comparison
Price Ranges
$182.02 - $188.35

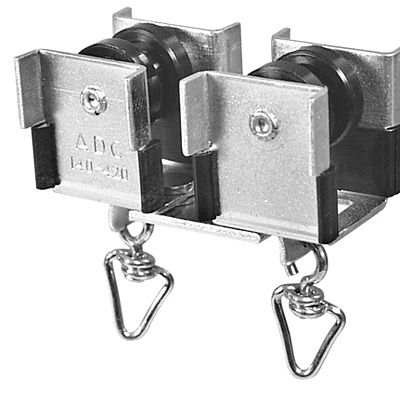

4253 Master Carrier

Pivoting block assembly constructed of plated steel supported from 4 solid nylon wheels.
View Comparison
Price Ranges
$66.97 - $71.03

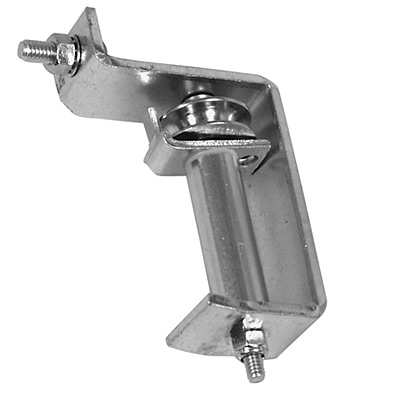

4258 Spindle A

Used to help guide the operating lines around the track curve.
View Comparison
Price Ranges
$63.40 - $68.62

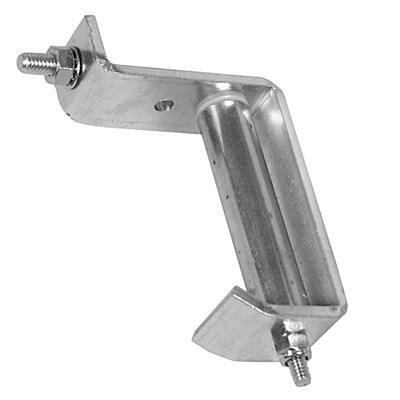

4259 Spindle B

Used to help guide the operating lines around the track curve.
View Comparison
Price Ranges
$53.23 - $58.46

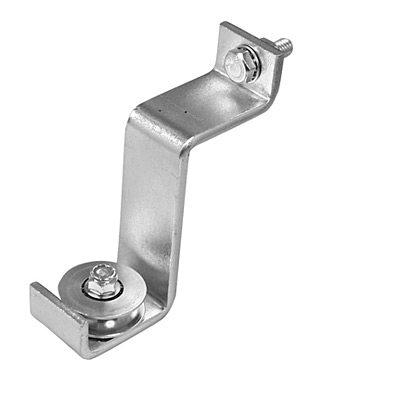

4260 Idler Bracket

Used to help guide the operating lines around the track curve.
View Comparison
Price Ranges
$40.03
