ADC Patriarc® 500 Series Track

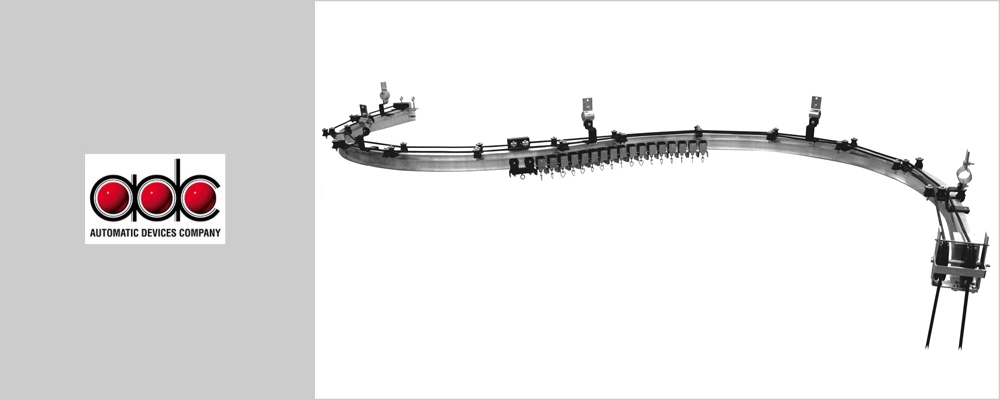

PATRIARC® is an all-purpose heavy-duty stage curtain track system specially designed for large reverse curved auditorium stages. All curves are custom formed at the factory. Equipped with ball-bearing carriers, end pulleys and cable guides, this is one of the quietest tracks in the ADC line. PATRIARC® track systems are normally used with a machine operator. Each drum curtain machine furnished with PATRIARC systems is equipped with a Cable Tension Device at no extra cost. Cable Tension Devices are used to help maintain tension on the operating cables as well help guide the operating cable onto the grooved drum. PATRIARC® curved tracks are available for hand-operation, though not recommended. Curved track systems are inherently more difficult to operate manually than are straight track systems. While PATRIARC® tracks are available for manual applications, we suggest motorizing curved applications of the track.

Ordering a track system for drapery or scenery requires some expert advice. Get great advice and track system pricing quickly by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, we’ll contact you to validate information and guide you through the selection process. Don’t worry if you don’t have all answers upfront. We’re here to help.

Request A Track System Quote

Learn more

Show Less

Installation Instructions Models: 500, 500R

Call 800-223-1624 or email for CWANA full system pricing.

Parts and track channel can be ordered below.

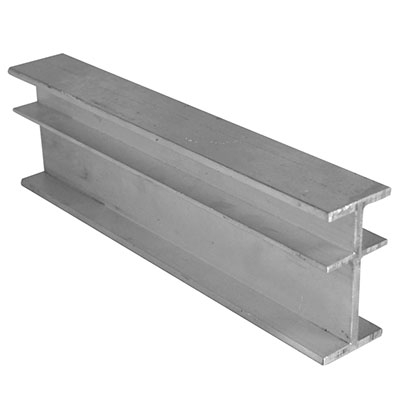

5000 Patriarc Track Channel

7 gauge extruded aluminum, mill-finish or anodized black finish.
View Comparison
Price Ranges
$330.48 - $705.22

5001 Single Carrier

Block constructed of plated steel supported from 2 nylon-tired ball-bearing wheels.
View Comparison
Price Ranges
$43.62 - $49.60

5001A Single Carrier

Block constructed of plated steel supported from 2 neoprene-tired ball-bearing wheels.
View Comparison
Price Ranges
$51.37

5001DS Drift Stop Single Carrier

Prevents the last carrier of the system from drifting past a predetermined point in the stack area.
View Comparison
Price Ranges
$74.97

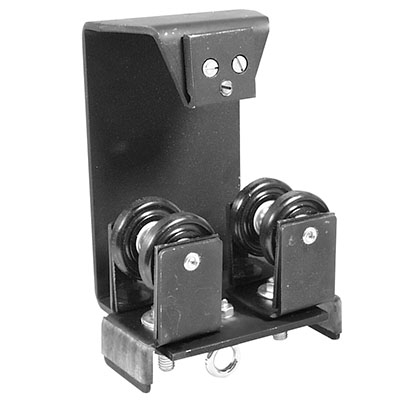

5002 Master Carrier

The standard master carrier for the Model 500 track system.
View Comparison
Price Ranges
$372.65

5002R Master Carrier

Master carrier for the Models 500-R, 501-R & 502-R. It is constructed of powder coated formed steel supported from 4 neoprene-tired ball-bearing wheels.
View Comparison
Price Ranges
$347.87

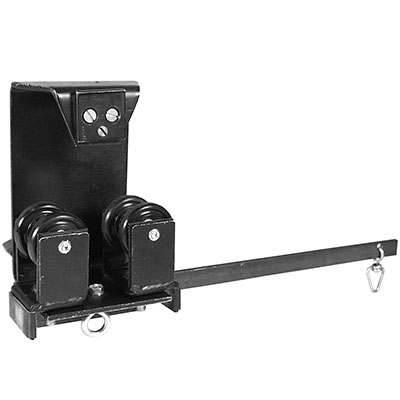

5002S Master Carrier with Overlap Arm

Used with single section track systems to create center overlap.
View Comparison
Price Ranges
$417.03

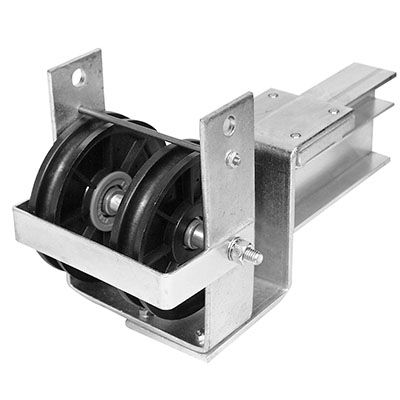

5003 Live End Pulley

Plated steel construction equipped with 2 glass-filled nylon tired ball-bearing 5"diameter wheels.
View Comparison
Price Ranges
$382.12 - $433.45

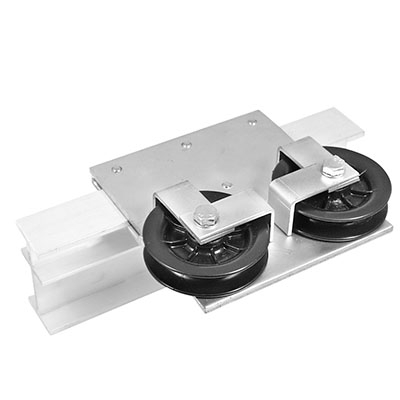

5003A Center Take-Off Live End Pulley

Routes operating cables perpendicular to the track.
View Comparison
Price Ranges
$177.68

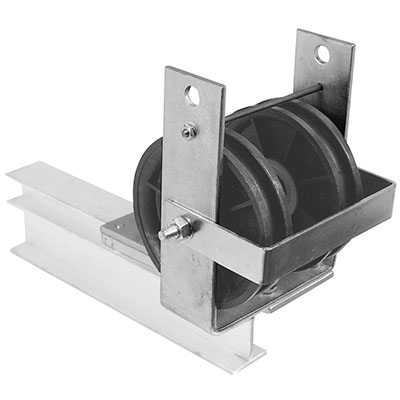

5003F Flying Live End Pulley

Routes operating cable 180 degrees up and over the track to the machine.
View Comparison
Price Ranges
$392.58

5004 Dead End Pulley

Plated steel construction equipped with 1 glass-filled nylon tired ball-bearing 5"diameter wheels.
View Comparison
Price Ranges
$184.83 - $211.90

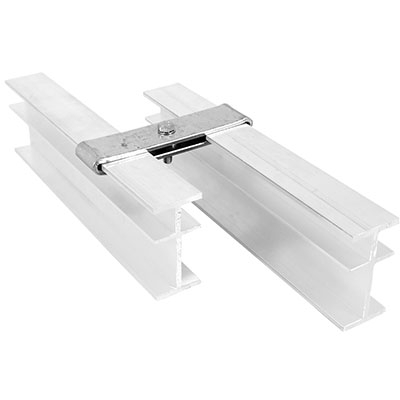

5007 Lap Clamp

For attaching bi-parting track sections at the center overlap.
View Comparison
Price Ranges
$23.97 - $31.67

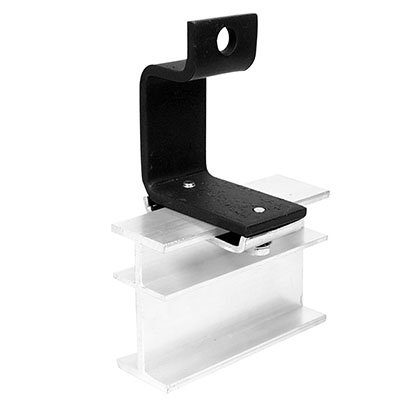

5008 Hanging Clamp

Constructed of hardened steel, powder coated black.
View Comparison
Price Ranges
$36.27 - $40.27

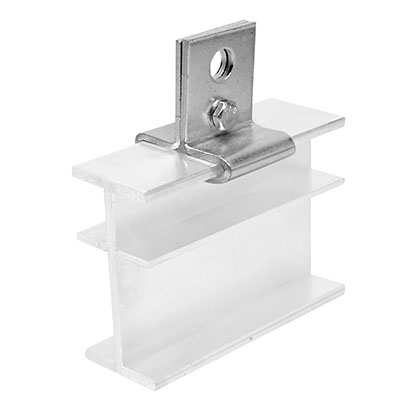

5008A Hanging Clamp Walk Along

Used with Model 502 suspended walk along systems only.
View Comparison
Price Ranges
$13.30 - $13.85

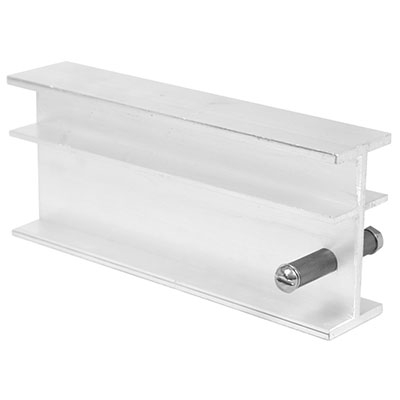

5009 End Stop

Prevents carriers from moving beyond selected position in track.
View Comparison
Price Ranges
$7.90

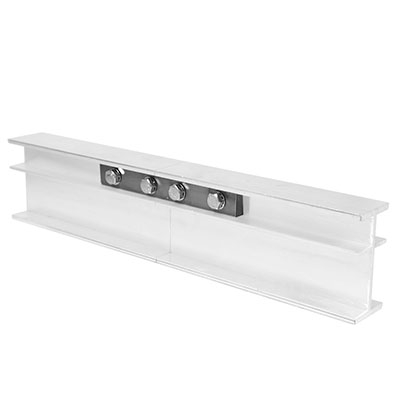

5024 Splice Plate

Splicing bars for joining track sections assuring proper alignment of track.
View Comparison
Price Ranges
$39.75 - $42.32

503 Left or Right Hand Standard Switching Device

Simply by pulling down on a pendant, the track channel is shifted and the curtain is then moved to the switched channel.
View Comparison
Price Ranges
$1,858.97

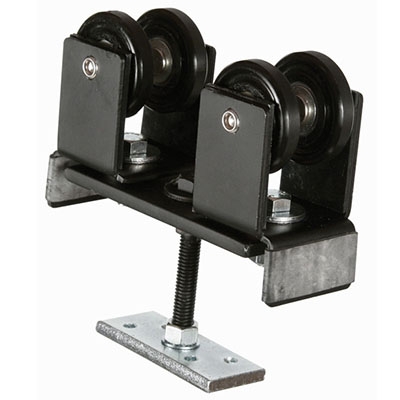

5051 Basic Scenery Carrier Walk-Along

Walk-along panel carrier for the Model 500 track series.
View Comparison
Price Ranges
$215.27

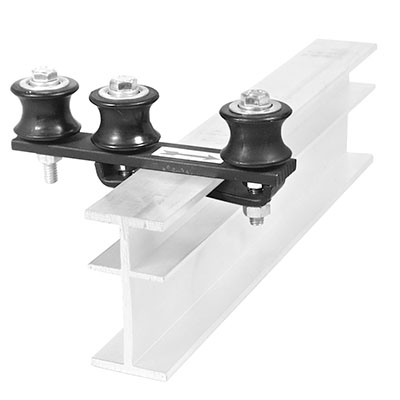

5058A Cable Guide

Used to guide the operating cable through a curved center overlap.
View Comparison
Price Ranges
$75.98

5058R Cable Guide (Outside Curve)

Used to guide operating cord/cable around curves.
View Comparison
Price Ranges
$92.26

5058W Cable Guide (Straight Sections)

Used to guide operating cord/cable around curves.
View Comparison
Price Ranges
$92.26
