Stretcher Frame

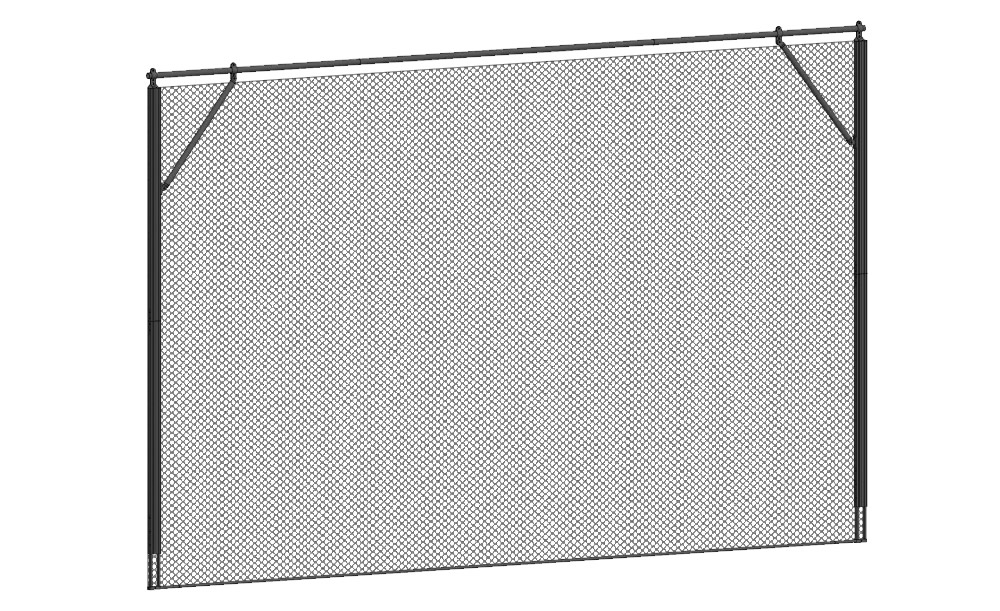

The Stretcher Frame System is designed to fix extreme “hourglassing” and puckering often encountered with scrims, bobbinettes, vinyl, projection screens, and muslin backdrops. Hourglassing occurs when fabrics naturally stretch vertically causing the sides to pull in, and in some cases, puckering occurs. When you can’t hide the hourglassing behind masking, the Rose Brand Stretcher Frame System is the answer.
See Stretcher Frame Technical Drawings (PDF)
Call 800-223-1624 or email customerservice@rosebrand.com for more information or to order.
Features include:
- Fast, easy attachment to batten
- Frame flies out with the backdrop
- Adaptable to different sized backdrops
- Drops can attach using hook & loop, ties or lacing methods
- Frame is a black anodized aluminum extrusion
- Extrusion accepts standard strut hardware fittings
- Purchase components or a preconfigured unit
- Sleeved bottom pipe for smooth pockets

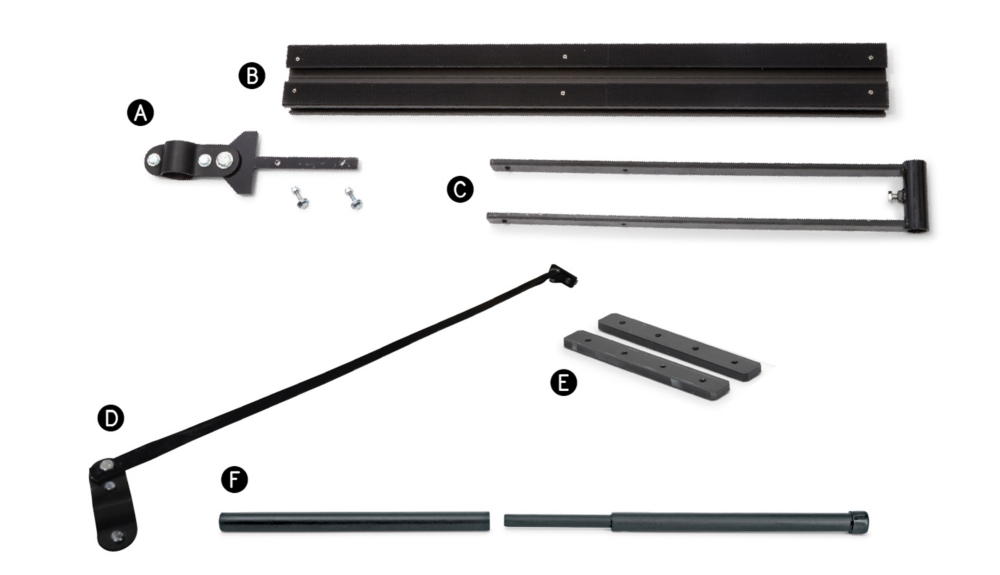

Stretcher Frame Components:
| A | Frame-Mounting Bracket with Batten Clamp |
| B | Frame Extrusion - 2" x 4" x 20' |
| C | Frame Trombone |
| D | Frame Diagonal Support |
| E | Frame Splice Set |
| F | Bottom Pipe with internal sleeves - 1/2" schedule 40 - 10' length |
Available as components or as a set that we can configure for your needs.
Curtain Finish Details:
Drops can attach using hook & loop, ties or lacing methods
Hook & Loop
Side Ties

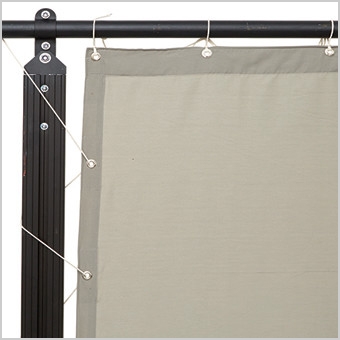

Side Lacing
Bottom Detail
