ADC 113 Curtain Track Specifine® Series
Specifine® Model 113 is a a small light duty aluminum box-shaped track. Use for straight installations up to 20 feet in length. Classrooms, board rooms, multi-purpose rooms, cafeterias, churches, and hotels are all ideal applications for the Model 113 Specifine® track. The tracks can be either recessed, surface mounted, or suspended from the ceiling. Uses two carriers per foot.
- Light duty channel.
- 16 gauge extruded aluminum.
- Clear anodized or black powder coated finish.
- Straight applications only, up to 20 feet long.
- Can be recessed into a finished ceiling.
- Walk-along or internal corded operation.
Ordering a track system for drapery or scenery may seem daunting, but we are here to help. Get great advice and pricing by submitting a request for a Custom Track System Quote online. Once your quote request is submitted, a Rose Brand or ADC expert will contact you to guide you through the selection process. You can also contact us at 800-223-1624 or email.
Specifications, drawings, installation, and support documents can be found in the Submital Binder and Installation Instructions.
113 Series SpecifineCategory
Compare Products
You have no items to compare.
Showing 1-17 of 17
close

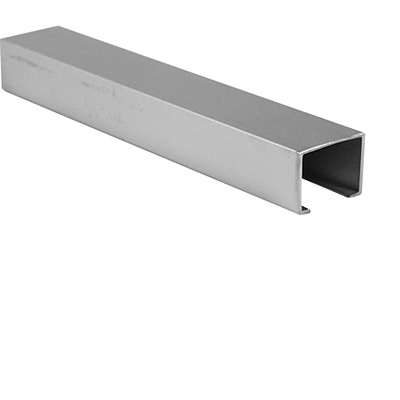

Specifine® Track Channel, 113
Light duty, 16 gauge, extruded aluminum U-channel curtain track. Straight track only.
Ball Bearing Single Carrier, 1131-B
Nylon ball-bearing wheels provide quieter and easier operation.
Master Carrier with Overlap Arm, 1132
Standard Specifine® 113 master carrier. Overlap arm. Solid polyethylene wheels.
Ball Bearing Master Carrier with Overlap Arm, 1132-B
Nylon ball-bearing wheels provide quieter and easier operation.
AV Carrier, 1163
Carrier with swivel hook used with Specifine® 113 to support light drapes, screens, etc.
Dead End Pulley, 1134
Dead end / return pulley for Specifine® 113. Mounts on the end of the track.
Adjustable Dead End Pulley, 1164
Dead end / return pulley for Specifine® 113. Mounts anywhere on the track.
3" Tension Floor Pulley, 2865
Standard spring tension floor pulley. Provides constant cord tension.
Splice Clamp, 1124-A
Sleeve used to join two sections of Specifine® 113 track. For suspended tracks only.
Hanging Clamp, 1138
Used with Specifine® 113 track. Space every 4' with more in stack areas.
Ceiling Clamps, 1178
Used to attach Specifine® 113 channel to T-bar of acoustical tile ceiling.
Projection Bracket, 2163
Used to wall mount smaller tracks, such as Specifine® 113, and Trak-Eze® 220.
End Stop, 1109
Prevents Specifine® 113 carriers from moving beyond center overlap and end of tracks.
Removable End Stop, 1110
Permits easy replacement of carriers. Prevents carriers from moving beyond the end of tracks.

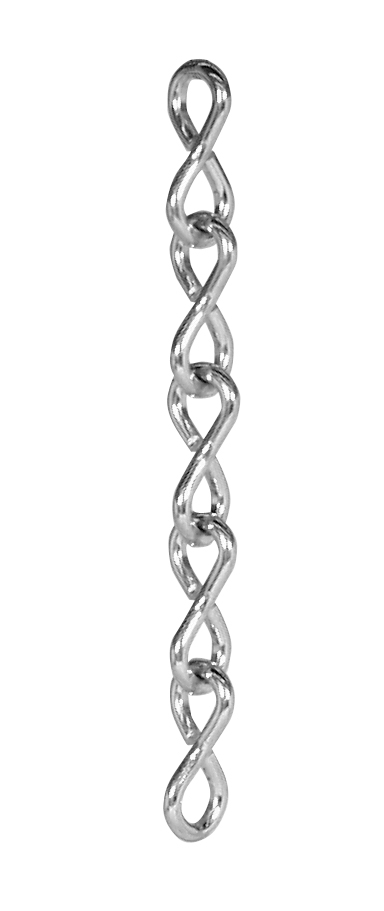

5" Trim Chain
Small piece of #8 jack chain that can be attached to carriers and used to trim curtain height.
