ADC T-Lift 2.0™

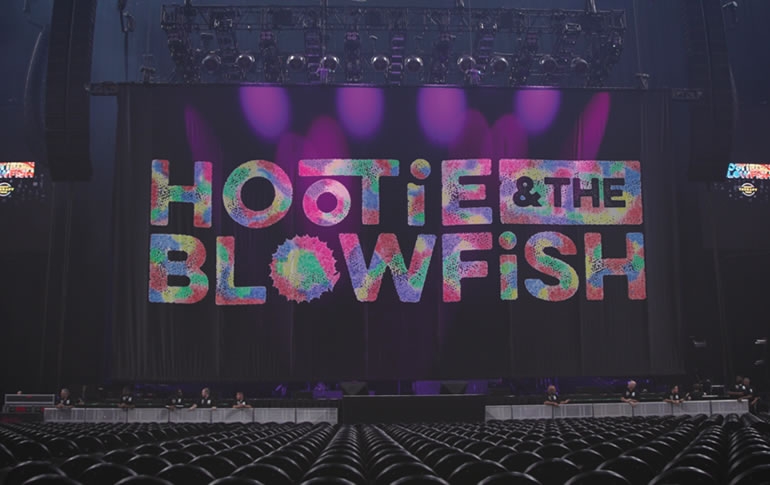

T-Lift 2.0™ is the easiest automated curtain rigging system ever. It's modular, pre-configured format enables you to rig your curtain lift system in minutes instead of days. It saves you tons of hassles and labor on site where it's most expensive. Just ask Hootie & The Blowfish. They’ve used the ADC T-Lift 2.0 system on their 44-city tour.

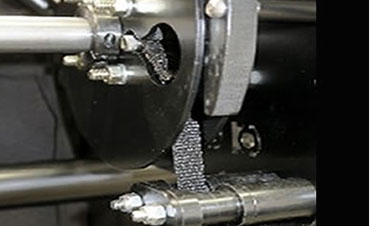

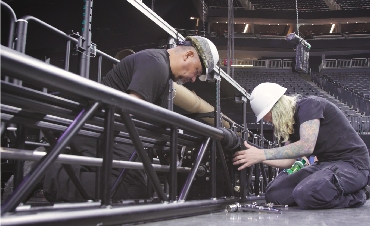

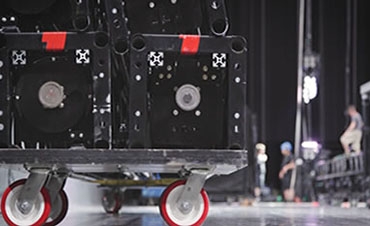

Crews need minimal supervision to install the T-Lift 2.0 system because it ships ready-to rig in familiar modular truss sections. Its new self-aligning shaft means you just bolt the modules together and hang the drape. Quick connect lift lines attach to the drums in seconds and allow you to leave the lines rigged into the curtain between tour stops.

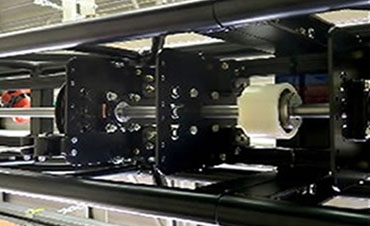

Aircraft cable has been replaced with flat, ½" kevlar lines that are just as strong and safe, yet silent and snarl-free. This means the lift lines can travel with the curtain and be folded for shipping. Place lift lines almost anywhere along the shaft with the newly designed open bottom "U" truss.

Control it with our Axis1 Open Platform Automation™ Controller. Axis1 provides control all by itself or seamlessly integrates with your Art-Net or sACN lighting desk, AV controller, media server, or full show control desk.

Contact us at 800-223-1624 or customerservice@rosebrand.com for more information or estimates on your particular project.

SPECIFICATIONS
SIZE	14" x 14" x 10', 8', & 6' sections, black powder coated. (dwg. available on request)
WEIGHT	20 lbs / ft (based on 3 lift lines per 10 ft)
RATED LIFT CAPACITY	600 lb. curtain capacity in standard configuration. Alternate motor and gearing solutions available for heavier loads or faster speeds.
SPEED	1" - 36" per second
MAX. LIFT LINE LENGTH	60 ft
MIN. DISTANCE BETWEEN SHEAVES	10 inch

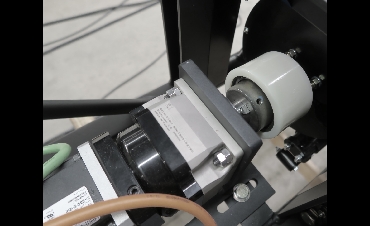

MOTOR	AC Brushless Servo Motor (4 HP equivalent)
POWER	208 3Ø Standard 15A
CONTROL	Pendant, relay, show control or Touch Screen
